Description

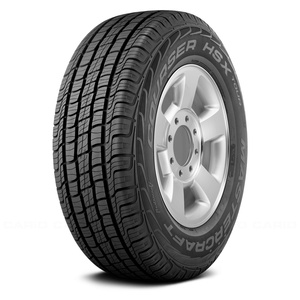

The Mastercraft Courser HSX Tour is a premium SUV tire designed to deliver a smooth, comfortable ride, responsive handling, all-season traction with long wearing tread. The HSX Tour is offered in the most popular sizes in the SUV market.

  • SCS Technology (Stability Control Siping utilizes 3-D sipes to stabilize tread elements providing enhanced handling in wet and dry conditions. Also, contributes to more even tread wear throughout the life of the tire)
  • Optimized Water Channels (Wide water channels allow water to be evacuated away from the tread area reducing the potential for hydroplaning and improve handling in adverse weather conditions)
  • Ventless Molding (The use of ventless molds improves the overall appearance of the Courser HSX Tour)
  • R-Tech Construction (R-Tech construction is sidewall construction feature that improves responsiveness in all driving conditions. The tire responds more quickly to driver input)

Detailed Information


Type and Size
Tire Model
Mastercraft Courser HSX Tour
Car Type
Light Truck / SUV
Season
All Season
Rim Diameter
15 / 16 / 17 / 18 / 19 / 20 / 22 "
Width
215 / 225 / 235 / 245 / 255 / 265 / 275 / 285 mm
Aspect Ratio
45 / 50 / 55 / 60 / 65 / 70 / 75 %
Construction
Radial
Special Features
Runflat
No
Mud and Snow
No
Extra Load
Optional
Speed and Load
Speed Index
H (max 130 mph) ... V (max 149 mph)
Load Index (max load for a tire)


Mastercraft Courser HSX Tour Sizes & Specifications


Rim Model Size Index Features sidewall styling overall diameter section width approved rim width max load (lbs) utqg tire weight load range measured rim width tread depth
R15 225/75 R15 102T 225/75 R15 102T BLK 28.39 8.9 6 - 7.5 1874 600/A/B 29 STD 6.0 13.0
R15 265/70 R15 112T 265/70 R15 112T OWL 29.61 10.7 7 - 9 2469 600/A/B 38 STD 8.0 13.0
R15 265/75 R15 112T 265/75 R15 112T OWL 30.47 10.4 7 - 9 2469 600/A/B 36 STD 7.5 13.0
R16 215/70 R16 100H 215/70 R16 100H OWL 27.72 8.7 5.5 - 7 1764 600/A/B 30 STD 6.5 13.0
R16 225/70 R16 103T 225/70 R16 103T OWL 28.62 9.0 6 - 7 1929 600/A/B 32 STD 6.5 13.0
R16 225/75 R16 104T 225/75 R16 104T OWL 29.09 8.6 6 - 7.5 1984 600/A/B 30 STD 6.0 13.0
R16 235/70 R16 106T 235/70 R16 106T OWL 28.82 9.4 6 - 8 2094 600/A/B 34 STD 7.0 13.0
R16 235/75 R16 108T 235/75 R16 108T OWL 29.65 9.3 6 - 8 2205 600/A/B 33 STD 6.5 13.0
R16 245/70 R16 107T 245/70 R16 107T OWL 29.41 9.8 6.5 - 8 2149 600/A/B 32 STD 7.0 13.0
R16 245/75 R16 111T 245/75 R16 111T OWL 30.24 9.6 6.5 - 8 2403 600/A/B 35 STD 7.0 13.0
R16 255/65 R16 109T 255/65 R16 109T BLK 29.09 10.2 7 - 9 2271 600/A/B 34 STD 7.5 12.5
R16 255/70 R16 111T 255/70 R16 111T OWL 29.96 10.2 6.5 - 8.5 2403 600/A/B 37 STD 7.5 13.0
R16 265/70 R16 112T 265/70 R16 112T OWL 30.35 10.8 7 - 9 2469 600/A/B 38 STD 8.0 13.0
R16 265/75 R16 116T 265/75 R16 116T OWL 31.42 10.6 7 - 9 2756 600/A/B 38 STD 7.5 13.0
R17 225/65 R17 102H 225/65 R17 102H BLK 28.54 9.1 6 - 8 1874 600/A/B 31 STD 6.5 12.0
R17 235/60 R17 102T 235/60 R17 102T BLK 28.11 9.4 6.5 - 8.5 1874 600/A/B 32 STD 7.0 12.0
R17 235/65 R17 104T 235/65 R17 104T OWL 29.17 9.4 6.5 - 8.5 1984 600/A/B 35 STD 7.0 12.5
R17 235/70 R17 111T XL 235/70 R17 111T XL BLK 30.0 9.5 6 - 8 2403 600/A/B 35 XL 7.0 13.0
R17 245/65 R17 107T 245/65 R17 107T OWL 29.53 9.5 7 - 8.5 2149 600/A/B 34 STD 7.0 12.5
R17 245/70 R17 110T 245/70 R17 110T OWL 30.43 9.7 6.5 - 8 2337 600/A/B 37 STD 7.0 13.0
R17 255/65 R17 110T 255/65 R17 110T OWL 30.12 10.1 7 - 9 2337 600/A/B 38 STD 7.5 12.5
R17 265/65 R17 112T 265/65 R17 112T OWL 30.59 10.6 7.5 - 9.5 2469 600/A/B 39 STD 8.0 12.5
R17 265/70 R17 115T 265/70 R17 115T OWL 31.38 10.7 7 - 9 2679 600/A/B 42 STD 8.0 13.0
R18 235/55 R18 100H 235/55 R18 100H BLK 28.31 9.8 6.5 - 8.5 1764 600/A/B 32 STD 7.5 12.0
R18 235/60 R18 107V XL 235/60 R18 107V XL BLK 29.29 9.4 6.5 - 8.5 2149 600/A/B 35 XL 7.0 12.0
R18 235/65 R18 106H 235/65 R18 106H BLK 30.08 9.4 6.5 - 8.5 2094 600/A/B 35 STD 7.0 12.5
R18 245/60 R18 105H 245/60 R18 105H BLK 29.69 9.6 7 - 8.5 2039 600/A/B 34 STD 7.0 12.0
R18 255/55 R18 109H XL 255/55 R18 109H XL BLK 29.13 10.3 7 - 9 2271 600/A/B 37 XL 8.0 12.0
R18 255/65 R18 111T 255/65 R18 111T BLK 31.1 10.1 7 - 9 2403 600/A/B 38 STD 7.5 12.5
R18 255/70 R18 113T 255/70 R18 113T BLK 32.09 10.2 6.5 - 8.5 2535 600/A/B 39 STD 7.5 13.0
R18 265/60 R18 110T 265/60 R18 110T OWL 30.55 10.5 7.5 - 9.5 2337 600/A/B 38 STD 8.0 12.5
R18 265/65 R18 114T 265/65 R18 114T OWL 31.5 10.7 7.5 - 9.5 2601 600/A/B 41 STD 8.0 12.5
R18 265/70 R18 116T 265/70 R18 116T OWL 32.56 10.7 7 - 9 2756 600/A/B 42 STD 8.0 13.0
R18 275/65 R18 116T 275/65 R18 116T OWL 32.13 11.0 7.5 - 9.5 2756 600/A/B 42 STD 8.0 12.5
R19 225/55 R19 99H 225/55 R19 99H BLK 28.86 9.2 6 - 8 1709 600/A/B 32 STD 7.0 12.0
R19 245/55 R19 103H 245/55 R19 103H BLK 29.69 9.8 7 - 8.5 1929 600/A/B 34 STD 7.5 12.5
R19 255/50 R19 107H XL 255/50 R19 107H XL BLK 29.06 10.2 7 - 9 2149 600/A/B 35 XL 8.0 12.0
R19 255/60 R19 109H 255/60 R19 109H BLK 31.1 10.2 7 - 9 2271 600/A/B 37 STD 7.5 12.0
R20 235/55 R20 102H 235/55 R20 102H BLK 30.16 9.7 6.5 - 8.5 1874 600/A/B 34 STD 7.5 12.0
R20 245/50 R20 102H 245/50 R20 102H BLK 29.69 9.8 7 - 8.5 1874 600/A/B 34 STD 7.5 12.0
R20 255/50 R20 109H XL 255/50 R20 109H XL BLK 30.08 10.4 7 - 9 2271 600/A/B 38 XL 8.0 12.0
R20 255/55 R20 107H 255/55 R20 107H BLK 31.1 10.4 7 - 9 2149 600/A/B 38 STD 8.0 12.0
R20 265/50 R20 107T 265/50 R20 107T BLK 30.63 10.7 7.5 - 9.5 2149 600/A/B 38 STD 8.5 12.5
R20 275/55 R20 117H XL 275/55 R20 117H XL BLK 31.93 10.9 7.5 - 9.5 2833 600/A/B 44 XL 8.5 12.5
R20 275/60 R20 115T 275/60 R20 115T BLK 33.03 10.9 7.5 - 9.5 2679 600/A/B 43 STD 8.0 12.5
R22 285/45 R22 114H XL 285/45 R22 114H XL BLK 32.13 11.2 9 - 10.5 2601 600/A/B 46 XL 9.5 12.0
