Description

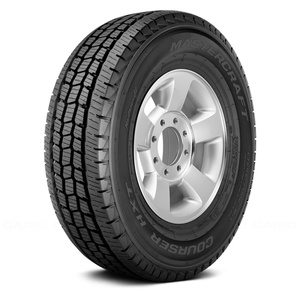

The Courser HXT is a commercial highway light truck rib tire that provides trusted all-season performance and dependable wear. The HXT was designed to provide enhanced wet and winter traction with increased tread stability. The large, solid shoulder elements help resist abnormal wear that is common with commercial vehicles.

  • Continuous Shoulder Rib (The continuous shoulder rib provides superior resistance to irregular wear for longer life and a quieter ride).
  • Interlocking Tread Elements (Interlocking tread elements at the center of the tire provides improved handling).
  • Circumferential Grooves (Wide circumferential grooves enhance water evacuation from the tire's footprint for resistance to hydroplaning).
  • Increased Lateral Slots (A 7% increase in the number of lateral slots within the design increases traction in both wet and snow conditions).

Detailed Information


Type and Size
Tire Model
Mastercraft Courser HXT
Car Type
Light Truck / SUV
Season
All Season
Rim Diameter
15 / 16 / 17 / 18 / 20 "
Width
185 / 205 / 215 / 225 / 235 / 245 / 265 / 275 / 285 mm
Aspect Ratio
60 / 65 / 70 / 75 / 80 / 85 %
Construction
Radial
Special Features
Runflat
No
Mud and Snow
No
Extra Load
No
Speed and Load
Speed Index
R (max 106 mph) ... T (max 118 mph)
Load Index (max load for a tire)


Mastercraft Courser HXT Sizes & Specifications


Rim Model Size Index Features sidewall styling overall diameter section width approved rim width max load (lbs) utqg tire weight load range measured rim width tread depth
R15 185/60 R15 94/92T 185/60 R15 94/92T BLK 23.78 7.4 5.5 - 6 1477 24 C 5.5 14.0
R15 205/65 R15 102/100T 205/65 R15 102/100T BLK 25.51 8.1 5.5 - 6.5 1875 26 C 6.0 14.0
R15 235/75 R15 104/101R 235/75 R15 104/101R BLK 28.9 9.1 6 - 7 1985 35 C 6.5 14.0
R16 215/85 R16 115/112R 215/85 R16 115/112R BLK 30.31 8.4 5.5 - 7 2680 37 E 6.0 14.5
R16 225/75 R16 115/112R 225/75 R16 115/112R BLK 29.21 8.5 6 - 7 2680 37 E 6.0 14.5
R16 235/65 R16 121/119R 235/65 R16 121/119R BLK 28.03 9.4 6.5 - 7.5 3195 37 E 7.0 14.5
R16 235/85 R16 120/116R 235/85 R16 120/116R BLK 31.77 9.4 6 - 7.5 3042 41 E 6.5 14.5
R16 245/75 R16 120/116R 245/75 R16 120/116R BLK 30.35 9.7 6.5 - 8 3042 41 E 7.0 14.5
R16 265/75 R16 112/109R 265/75 R16 112/109R BLK 31.61 10.5 7 - 8 2470 43 C 7.5 14.5
R16 265/75 R16 123/120R 265/75 R16 123/120R BLK 31.61 10.6 7 - 8 3415 46 E 7.5 14.5
R16 285/75 R16 126/123R 285/75 R16 126/123R BLK 32.56 11.6 7.5 - 9 3750 52 E 8.0 15.0
R17 225/75 R17 116/113R 225/75 R17 116/113R BLK 30.35 8.7 6 - 7.5 2755 39 E 6.0 14.5
R17 235/80 R17 120/117R 235/80 R17 120/117R BLK 31.77 9.2 6 - 7.5 3085 41 E 6.5 14.5
R17 245/70 R17 119/116S 245/70 R17 119/116S BLK 30.55 9.8 6.5 - 8 3000 41 E 7.0 14.5
R17 245/75 R17 121/118S 245/75 R17 121/118S BLK 31.5 10.0 6.5 - 7.5 3195 45 E 7.0 14.5
R17 265/70 R17 121/118S 265/70 R17 121/118S BLK 31.65 10.9 7 - 8.5 3195 47 E 8.0 14.5
R17 285/70 R17 121/118S 285/70 R17 121/118S BLK 32.83 11.4 7.5 - 9 3195 50 E 8.5 15.0
R18 265/70 R18 124/121S 265/70 R18 124/121S BLK 32.64 10.7 7 - 9 3525 50 E 8.0 14.5
R18 275/65 R18 123/120S 275/65 R18 123/120S BLK 32.09 11.1 7.5 - 9.5 3415 50 E 8.0 14.5
R18 275/70 R18 125/122S 275/70 R18 125/122S BLK 33.23 11.1 7 - 8.5 3640 51 E 8.0 14.5
R20 275/65 R20 126/123S 275/65 R20 126/123S BLK 34.21 11.1 7.5 - 9.5 3750 54 E 8.0 14.0
