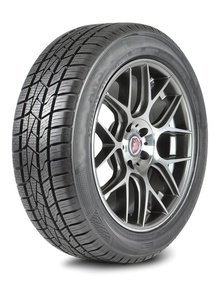

Description


Designed for any season, and all types of weather.

The AW5’s tread compound and pattern are specifically designed to deliver high performance all year round, in any type of weather. Numerous biting edges provide increased traction in wet, snowy, or icy conditions. Pattern blocks within contain high-density waves of stereoscopic sipes, which allows the tire to maintain block rigidity and enhances both control and performance.

Features & Benefits:

  • Big Pattern Outside Block Design (Increased rigidity is provided, increasing control and elevating performance);
  • Quiet Ride Pitch Alignment (Road noise caused by resonance is heavily reduced, due to computer optimized tread pattern pitches);
  • Inside Multiple Cross Pattern Design (Allows the tire to absorb more snow, making the trapped snow stronger. This provides the tire with enhanced traction and grip on icy roads and winter conditions);
  • Wide Longitudinal Drainage Grooves (Designed for peak performance in the rain and snow, due to the three wide longitudinal drainage grooves which channel road water out from underneath the tire).

Detailed Information


Type and Size
Tire Model
Delinte AW5
Car Type
Passenger
Season
All Season
Rim Diameter
13 / 14 / 15 / 16 / 17 / 18 "
Width
155 / 165 / 175 / 185 / 195 / 205 / 215 / 225 / 235 / 255 mm
Aspect Ratio
45 / 50 / 55 / 60 / 65 / 70 %
Construction
Radial
Special Features
Runflat
No
Mud and Snow
No
Extra Load
Optional
Speed and Load
Speed Index
H (max 130 mph) ... W (max 168 mph)
Load Index (max load for a tire)


Delinte AW5 Sizes & Specifications


Rim Model Size Index Features max load (kg) revs per mile approved rim width section width (mm) max load (lbs) utqg tread depth (mm) load range section width (inch) ply rating
R13 165/70 R13 79T 165/70 R13 79T 437 939.0 4.50B-5.00B-5.50B 170 963 360/A/A 8.5 6.7
R13 175/70 R13 82T 175/70 R13 82T 475 916.0 4.50B-5.00B-5.50B 177 1047 360/A/A 8.5 7.0
R14 155/65 R14 75T 155/65 R14 75T 387 945.0 4.5-5.0 157 853 360/A/A 8.5 6.2
R14 165/60 R14 75H 165/60 R14 75H 387 952.0 4.5-5.0-5.5 170 853 500/A/A 8.5 6.7
R14 165/65 R14 79T 165/65 R14 79T 437 926.0 4.5-5.0-5.5 170 963 360/A/A 8.5 6.7
R14 165/70 R14 81T 165/70 R14 81T 462 897.0 4.5-5.0-5.5 170 1019 360/A/A 8.5 6.7
R14 165/70 R14 85T XL 165/70 R14 85T XL 515 897.0 4.5-5.0-5.5 170 1135 360/A/A 8.5 XL 6.7
R14 175/65 R14 82T 175/65 R14 82T 475 903.0 5.0-5.5 177 1047 360/A/A 8.5 7.0
R14 175/70 R14 88T XL 175/70 R14 88T XL 560 876.0 4.5-5.0-5.5 177 1235 360/A/A 8.5 XL 7.0
R14 185/55 R14 80T 185/55 R14 80T 450 942.0 5.5-6.0-6.5 194 992 360/A/A 8.5 7.6
R14 185/60 R14 82H 185/60 R14 82H 475 913.0 5.0-5.5-6.0 189 1047 360/A/A 8.5 7.4
R15 175/65 R15 84H 175/65 R15 84H 500 866.0 5.0-5.5 177 1102 360/A/A 8.3 7.0
R15 175/65 R15 88H XL 175/65 R15 88H XL 560 866.0 5.0-5.5 177 1235 360/A/A 8.3 XL 7.0
R15 185/55 R15 82H 185/55 R15 82H 475 902.0 5.5-6.0-6.5 194 1047 360/A/A 8.5 7.6
R15 185/55 R15 86H XL 185/55 R15 86H XL 530 902.0 5.5-6.0-6.5 194 1168 360/A/A 8.5 XL 7.6
R15 185/60 R15 88H XL 185/60 R15 88H XL 560 875.0 5.0-5.5-6.0 189 1235 360/A/A 8.5 XL 7.4
R15 185/65 R15 88H 185/65 R15 88H 560 850.0 5.0-5.5-6.0 189 1235 360/A/A 8.5 7.4
R15 195/50 R15 82V 195/50 R15 82V 475 914.0 5.5-6.0-6.5 201 1047 360/A/A 8.5 7.9
R15 195/55 R15 85H 195/55 R15 85H 515 887.0 5.5-6.0-6.5 201 1135 360/A/A 8.5 7.9
R15 195/60 R15 88H 195/60 R15 88H 560 858.0 5.5-6.0-6.5 201 1235 360/A/A 8.5 7.9
R15 195/65 R15 91H 195/65 R15 91H 615 831.0 5.5-6.0-6.5 201 1356 360/A/A 8.5 7.9
R16 195/55 R16 87H 195/55 R16 87H 545 851.0 5.5-6.0-6.5 201 1201 360/A/A 8.5 7.9
R16 205/55 R16 91V 205/55 R16 91V 615 835.0 6.0-6.5-7.0 214 1356 360/A/A 8.5 8.4
R16 205/60 R16 96H XL 205/60 R16 96H XL 710 809.0 5.5-6.0-6.5 209 1565 360/A/A 8.5 XL 8.2
R16 215/55 R16 97V XL 215/55 R16 97V XL 730 822.0 6.5-7.0-7.5 226 1609 360/A/A 8.5 XL 8.9
R16 215/60 R16 99V 215/60 R16 99V 775 794.0 6.0-6.5-7.0 221 1709 360/A/A 8.5 8.7
R16 215/65 R16 102V 215/65 R16 102V 850 769.0 6.0-6.5-7.0 221 1874 360/A/A 8.5 8.7
R17 205/50 R17 93W 205/50 R17 93W 650 827.0 6.0-6.5-7.0 214 1433 360/A/A 8.5 8.4
R17 205/55 R17 95V 205/55 R17 95V 690 802.0 6.0-6.5-7.0 214 1521 500/A/A 8.5 8.4
R17 215/55 R17 98W 215/55 R17 98W 750 790.0 6.5-7.0-7.5 226 1653 360/A/A 8.5 8.9
R17 225/45 R17 94V XL 225/45 R17 94V XL 670 832.0 7.0-7.5-8.0 225 1477 360/A/A 8.3 XL 8.9
R17 225/50 R17 98V 225/50 R17 98V 750 802.0 6.5-7.0-7.5 233 1653 360/A/A 8.5 9.2
R17 225/55 R17 101W 225/55 R17 101W 825 776.0 6.5-7.0-7.5 233 1819 360/A/A 8.5 9.2
R17 235/45 R17 97V 235/45 R17 97V 730 819.0 7.5-8.0-8.5 236 1609 360/A/A 8.5 9.3
R17 235/45 R17 97W XL 235/45 R17 97W XL 730 819.0 7.5-8.0-8.5 236 1609 360/A/A 8.5 XL 9.3
R18 235/50 R18 101V 235/50 R18 101V 825 761.0 7.0-7.5-8.0 245 1819 360/A/A 8.5 9.6
R18 235/60 R18 107V 235/60 R18 107V 975 714.0 6.5-7.0-7.5 240 2149 360/A/A 8.5 9.4
R18 255/55 R18 109V 255/55 R18 109V 1030 716.0 7.5-8.0-8.5 265 2271 360/A/A 8.5 10.4
