Description

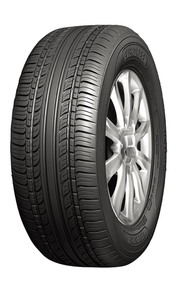

The EH23 is a high performance radial tyre designed for maximum comfort and to provide good handling in wet and dry conditions.

  • Comfort (Under the premise of fulfilling the tread rigid, diversity distribution of pattern blocks increase the flexibility in a large extent, and enhance the tire damping functions, provide a more comfortable driving feel).
  • Mute (Small pattern blocks of high-density distribution effectively offsets the noise generated when the air compressing emissions. By a variety of simulated irregular arrangement of pitch patterns, it reduces the noise caused by tire vibration).
  • Non-skid feature (The 4 Channel-Groove in the optimal design of layout and width gives non-slip performance maximization, and ensures superior drainage performance in wetland road to provide a safe escort in the raining drive. The formulations with silicon etc effectively improve the non-skid properties of tires to secure driving on wet roads).
  • Manipulation (Centre Rib increases the operating and braking performance significantly, enhances greatly ground grip and the operating stability; the increased ground-contact rate is designed to enhance the adhesion on wet and dry road. Enhanced tread block increases the strength of rotary power and braking capabilities with increasing manoeuvrability).
  • Bead adhesion stability (Special bead contour design makes more close contact with the wheel rim after inflating the tire, and shortens the turn-up of the toe to provide greater security).

Detailed Information


Type and Size
Tire Model
Evergreen EH23
Car Type
Passenger
Season
All Season
Rim Diameter
14 / 15 / 16 / 17 "
Width
165 / 175 / 185 / 195 / 205 / 215 / 225 / 235 mm
Aspect Ratio
45 / 50 / 55 / 60 / 65 / 70 %
Construction
Radial
Special Features
Runflat
No
Mud and Snow
No
Extra Load
Optional
Speed and Load
Speed Index
H (max 130 mph) ... W (max 168 mph)
Load Index (max load for a tire)


Evergreen EH23 Sizes & Specifications


Rim Model Size Index Features overall diameter (inch) max inflation pressure overall diameter (mm) load range section width (inch) section width (mm) max load
R14 165/65 R14 79T 165/65 R14 79T 22.4 300 570 6.7 170 437
R14 175/60 R14 79H 175/60 R14 79H 22.3 300 566 7.0 177 437
R14 175/65 R14 82T 175/65 R14 82T 23.0 300 584 7.0 177 475
R14 175/65 R14 86T XL 175/65 R14 86T XL 23.0 340 584 XL 7.0 177 530
R14 185/50 R14 77V 185/50 R14 77V 21.3 300 542 7.6 194 412
R14 185/55 R14 80V 185/55 R14 80V 22.0 300 560 7.6 194 450
R14 185/60 R14 82H 185/60 R14 82H 22.8 300 578 7.4 189 475
R14 185/65 R14 86H 185/65 R14 86H 23.5 300 596 7.4 189 530
R14 195/60 R14 86H 195/60 R14 86H 23.2 300 590 7.9 201 530
R14 195/65 R14 89H 195/65 R14 89H 24.0 300 610 7.9 201 580
R15 175/55 R15 77T 175/55 R15 77T 22.6 300 573 7.2 182 412
R15 175/65 R15 84H 175/65 R15 84H 24.0 300 609 7.0 177 500
R15 185/55 R15 82V 185/55 R15 82V 23.0 300 585 7.6 194 475
R15 185/60 R15 84H 185/60 R15 84H 23.7 300 603 7.4 189 500
R15 185/60 R15 88H XL 185/60 R15 88H XL 23.7 340 603 XL 7.4 189 560
R15 185/65 R15 88H 185/65 R15 88H 24.4 300 621 7.4 189 560
R15 185/65 R15 92H XL 185/65 R15 92H XL 24.4 340 621 XL 7.4 189 630
R15 195/45 R15 78V 195/45 R15 78V 21.9 300 557 7.7 195 425
R15 195/50 R15 82V 195/50 R15 82V 22.7 300 577 7.9 201 475
R15 195/55 R15 85V 195/55 R15 85V 23.4 300 595 7.9 201 515
R15 195/60 R15 88V 195/60 R15 88V 24.2 300 615 7.9 201 560
R15 195/65 R15 91H 195/65 R15 91H 25.0 300 635 7.9 201 615
R15 195/65 R15 95T XL 195/65 R15 95T XL 25.0 340 635 XL 7.9 201 690
R15 205/50 R15 86V 205/50 R15 86V 23.1 300 587 8.4 214 530
R15 205/50 R15 89V XL 205/50 R15 89V XL 23.1 340 587 XL 8.4 214 580
R15 205/60 R15 91V 205/60 R15 91V 24.7 300 627 8.2 209 615
R15 205/60 R15 95H XL 205/60 R15 95H XL 24.7 340 627 XL 8.2 209 690
R15 205/65 R15 94V 205/65 R15 94V 25.5 300 647 8.2 209 670
R15 215/60 R15 98V XL 215/60 R15 98V XL 25.2 340 639 XL 8.7 221 750
R15 215/65 R15 96V 215/65 R15 96V 26.0 300 661 8.7 221 710
R15 215/70 R15 98H 215/70 R15 98H 26.9 300 683 8.7 221 750
R15 225/60 R15 96V 225/60 R15 96V 25.6 300 651 9.0 228 710
R16 185/55 R16 83H 185/55 R16 83H 24.0 300 610 7.6 194 487
R16 195/45 R16 84W XL 195/45 R16 84W XL 22.9 340 582 XL 7.7 195 500
R16 195/50 R16 88V XL 195/50 R16 88V XL 23.7 340 602 XL 7.9 201 560
R16 195/55 R16 87V 195/55 R16 87V 24.4 300 620 7.9 201 545
R16 195/55 R16 91V XL 195/55 R16 91V XL 24.4 340 620 XL 7.9 201 615
R16 195/60 R16 89V 195/60 R16 89V 25.2 300 640 7.9 201 580
R16 205/55 R16 94V XL 205/55 R16 94V XL 24.9 340 632 XL 8.4 214 670
R16 205/60 R16 92V 205/60 R16 92V 25.7 300 652 8.2 209 630
R16 215/60 R16 95V 215/60 R16 95V 26.1 300 664 8.7 221 690
R16 215/65 R16 98H 215/65 R16 98H 27.0 300 686 8.7 221 750
R16 235/60 R16 100V 235/60 R16 100V 27.1 300 688 9.4 240 800
R17 215/55 R17 94V 215/55 R17 94V 26.3 300 668 8.9 226 670
R17 215/55 R17 98V XL 215/55 R17 98V XL 26.3 340 668 XL 8.9 226 750
R17 225/60 R17 98T 225/60 R17 98T 27.6 300 702 9.0 228 750
R17 225/65 R17 102H 225/65 R17 102H 28.5 300 724 9.0 228 850
R17 235/55 R17 98H 235/55 R17 98H 27.2 300 690 9.6 245 750
