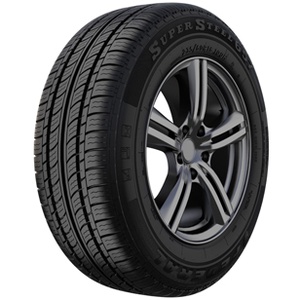

Federal SS657
Type: Passenger / All Season
Key Facts about Federal SS657:
- Release Date: 2009
- Regions of sales: Asia, Northern America, Europe, Eastern Europe & Central Asia, Oceania
Description
The Super Steel 657 delivers passenger car drivers smooth driving, tranquility, and long tread life.
- Optimized pattern design reduces noise and vibration for quiet and comfort rides
- Wide circumferential grooves grant rapid water channeling and reduced aquaplaning on wet roads
- Excellent all-around, wet and dry performance, plus long tread life for highway and everyday rides
Detailed Information
Type and Size
- Tire Model
- Federal SS657
- Car Type
- Passenger
- Season
- All Season
- Rim Diameter
- 12 / 13 / 14 / 15 / 16 "
- Width
- 135 / 145 / 155 / 165 / 168 / 175 / 185 / 195 / 196 / 202 / 203 / 205 / 215 / 218 / 219 / 221 / 225 / 228 / 235 / 236 mm
- Aspect Ratio
- 60 / 65 / 70 / 80 %
- Construction
- Radial
Special Features
- Runflat
- No
- Mud and Snow
- No
- Extra Load
- Optional
Speed and Load
- Speed Index
- H (max 130 mph) ... T (max 118 mph)
- Load Index (max load for a tire)
Federal SS657 Sizes & Specifications
| Rim | Model | Size | Index | Features | sidewall styling | tread depth (mm) | max load (kg) | tread width (mm) | tread width (inch) | overall diameter (mm) | rim width | utqg | max inflation pressure | approved rim width | max load (lbs) | tread depth (inch) | overall diameter (inch) | load range | section width (mm) | section width (inch) | tire weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R12 | 145/70 R12 69T | 145/70 R12 | 69T | BW | 8.8 | 325.0 | 105.0 | 4.1 | 512 | 4.5 | 420/A/A | 44.0 | 4-5 | 716 | 7.0 | 20.2 | 148 | 5.8 | 5.2 | |||
| R12 | 155/80 R12 77T | 155/80 R12 | 77T | BW | 9.0 | 412.0 | 107.0 | 4.2 | 554 | 4.5 | 420/A/A | 44.0 | 4-5 | 908 | 7.5 | 21.8 | 159 | 6.3 | 5.9 | |||
| R13 | 135/80 R13 70T | 135/80 R13 | 70T | BW | 9.0 | 335.0 | 93.0 | 3.7 | 546 | 3.5 | 420/A/A | 44.0 | 3.5-4.5 | 739 | 7.3 | 21.5 | 138 | 5.4 | 5.3 | |||
| R13 | 145/70 R13 71T | 145/70 R13 | 71T | BW | 9.0 | 345.0 | 105.0 | 4.2 | 535 | 4.5 | 420/A/A | 44.0 | 4-5 | 760 | 7.4 | 21.1 | 152 | 6.0 | 5.6 | |||
| R13 | 145/80 R13 75T | 145/80 R13 | 75T | BW | 9.0 | 387.0 | 101.0 | 3.9 | 562 | 4.0 | 420/A/A | 44.0 | 3.5-4.5 | 853 | 7.4 | 22.1 | 149 | 5.9 | 5.7 | |||
| R13 | 155/65 R13 73T | 155/65 R13 | 73T | BW | 10.0 | 365.0 | 121.0 | 4.8 | 532 | 4.5 | 420/A/A | 44.0 | 4.5-5.5 | 805 | 7.7 | 20.9 | 158 | 6.2 | 5.8 | |||
| R13 | 155/70 R13 75T | 155/70 R13 | 75T | BW | 10.0 | 387.0 | 113.0 | 4.4 | 546 | 4.5 | 420/A/A | 44.0 | 4-5 | 853 | 7.8 | 21.5 | 160 | 6.3 | 6.1 | |||
| R13 | 155/80 R13 79T | 155/80 R13 | 79T | BW | 9.0 | 437.0 | 107.0 | 4.2 | 578 | 4.5 | 420/A/A | 44.0 | 4-5 | 963 | 7.5 | 22.8 | 159 | 6.3 | 6.7 | |||
| R13 | 165/65 R13 77T | 165/65 R13 | 77T | BW | 10.0 | 412.0 | 124.0 | 4.9 | 545 | 5.0 | 420/A/A | 44.0 | 4.5-6 | 908 | 7.6 | 21.5 | 160 | 6.3 | 6.4 | |||
| R13 | 165/70 R13 79T | 165/70 R13 | 79T | BW | 10.0 | 437.0 | 120.0 | 4.7 | 560 | 5.0 | 420/A/A | 44.0 | 4.5-5.5 | 963 | 7.9 | 22.0 | 170 | 6.7 | 6.6 | |||
| R13 | 165/80 R13 83T | 165/80 R13 | 83T | BW | 9.0 | 487.0 | 114.0 | 4.4 | 594 | 4.5 | 420/A/A | 44.0 | 4-5 | 1073 | 7.6 | 23.4 | 168 | 6.6 | 7.3 | |||
| R13 | 175/60 R13 77H | 175/60 R13 | 77H | BW | 10.0 | 412.0 | 140.0 | 5.5 | 542 | 5.0 | 420/A/A | 44.0 | 4.5-5.5 | 908 | 7.6 | 21.4 | 171 | 6.7 | 6.4 | |||
| R13 | 175/65 R13 80T | 175/65 R13 | 80T | BW | 10.0 | 450.0 | 130.0 | 5.1 | 557 | 5.0 | 420/A/A | 44.0 | 5-6 | 992 | 7.7 | 21.9 | 176 | 6.9 | 6.7 | |||
| R13 | 175/70 R13 82T | 175/70 R13 | 82T | BW | 10.0 | 475.0 | 127.0 | 5.0 | 581 | 5.0 | 420/A/A | 44.0 | 4.5-5.5 | 1047 | 7.7 | 22.9 | 173 | 6.8 | 7.2 | |||
| R13 | 185/60 R13 80H | 185/60 R13 | 80H | BW | 10.0 | 450.0 | 152.0 | 6.0 | 553 | 5.5 | 420/A/A | 44.0 | 5-6 | 992 | 7.9 | 21.8 | 192 | 7.5 | 7.1 | |||
| R13 | 185/70 R13 86T | 185/70 R13 | 86T | BW | 10.0 | 530.0 | 134.0 | 5.3 | 589 | 5.5 | 420/A/A | 44.0 | 5-6 | 1168 | 7.9 | 23.2 | 192 | 7.6 | 7.4 | |||
| R13 | 205/60 R13 87H | 205/60 R13 | 87H | BW | 10.0 | 545.0 | 168.0 | 6.6 | 576 | 6.0 | 420/A/A | 44.0 | 5.5-7 | 1202 | 8.1 | 22.7 | 210 | 8.3 | 8.8 | |||
| R14 | 165/60 R14 75H | 165/60 R14 | 75H | BW | 553 | 21.8 | 173 | 6.8 | ||||||||||||||
| R14 | 165/65 R14 79T | 165/65 R14 | 79T | BW | 10.0 | 437.0 | 124.0 | 4.9 | 569 | 5.0 | 420/A/A | 44.0 | 4.5-6 | 963 | 7.6 | 22.4 | 160 | 6.3 | 6.9 | |||
| R14 | 165/70 R14 81T | 165/70 R14 | 81T | BW | 10.1 | 462.0 | 120.0 | 4.7 | 589 | 5.0 | 420/A/A | 44.0 | 4.5-5.5 | 1019 | 8.0 | 23.2 | 171 | 6.7 | 6.7 | |||
| R14 | 165/70 R14 85T XL | 165/70 R14 | 85T | XL | BW | 9.2 | 515.0 | 120.0 | 4.7 | 587 | 5.0 | 420/A/A | 50.0 | 4.5-5.5 | 1135 | 7.3 | 23.1 | XL | 171 | 6.7 | 6.9 | |
| R14 | 175/60 R14 79H | 175/60 R14 | 79H | BW | 9.1 | 437.0 | 140.0 | 5.5 | 566 | 5.0 | 420/A/A | 44.0 | 4.5-5.5 | 963 | 7.3 | 22.3 | 175 | 6.9 | 7.0 | |||
| R14 | 175/65 R14 82T | 175/65 R14 | 82T | BW | 10.0 | 475.0 | 136.0 | 5.4 | 584 | 5.0 | 420/A/A | 44.0 | 5-6 | 1047 | 7.7 | 23.0 | 176 | 6.9 | 7.6 | |||
| R14 | 175/65 R14 86T XL | 175/65 R14 | 86T | XL | BW | 10.0 | 530.0 | 136.0 | 5.4 | 584 | 5.0 | 420/A/A | 50.0 | 5-6 | 1168 | 7.7 | 23.0 | XL | 176 | 6.9 | 7.4 | |
| R14 | 175/70 R14 84T | 175/70 R14 | 84T | BW | 10.0 | 500.0 | 124.0 | 4.9 | 600 | 5.0 | 420/A/A | 44.0 | 4.5-6 | 1102 | 7.8 | 23.6 | 179 | 7.0 | 7.5 | |||
| R14 | 175/80 R14 88T | 175/80 R14 | 88T | BW | 9.0 | 560.0 | 121.0 | 4.8 | 636 | 5.0 | 420/A/A | 44.0 | 4.5-5 | 1235 | 7.7 | 25.0 | 179 | 7.0 | 7.9 | |||
| R14 | 185/60 R14 82H | 185/60 R14 | 82H | BW | 10.0 | 475.0 | 148.0 | 5.8 | 581 | 5.5 | 420/A/A | 44.0 | 5-6 | 1047 | 8.0 | 22.9 | 184 | 7.2 | 7.1 | |||
| R14 | 185/65 R14 86H | 185/65 R14 | 86H | BW | 10.0 | 530.0 | 146.0 | 5.7 | 595 | 5.5 | 420/A/A | 44.0 | 5-6.5 | 1168 | 7.6 | 23.4 | 185 | 7.3 | 8.2 | |||
| R14 | 185/65 R14 86T | 185/65 R14 | 86T | BW | 10.0 | 530.0 | 146.0 | 5.7 | 595 | 5.5 | 420/A/A | 44.0 | 5-6.5 | 1168 | 8.2 | 23.4 | 185 | 7.3 | 8.2 | |||
| R14 | 185/70 R14 88T | 185/70 R14 | 88T | BW | 10.0 | 560.0 | 132.0 | 5.2 | 620 | 5.5 | 420/A/A | 44.0 | 4.5-6 | 1235 | 7.9 | 24.4 | 191 | 7.5 | 8.6 | |||
| R14 | 185/80 R14 91T | 185/80 R14 | 91T | BW | 10.0 | 615.0 | 128.0 | 5.0 | 650 | 5.0 | 420/A/A | 44.0 | 4.5-5.5 | 1356 | 7.9 | 25.6 | 189 | 7.4 | 9.2 | |||
| R14 | 195/60 R14 86H | 195/60 R14 | 86H | BW | 10.0 | 530.0 | 156.0 | 6.1 | 590 | 6.0 | 420/A/A | 44.0 | 5.5-6.5 | 1168 | 7.9 | 23.2 | 190 | 7.5 | 7.7 | |||
| R14 | 195/65 R14 89H | 195/65 R14 | 89H | BW | 10.0 | 580.0 | 152.0 | 6.0 | 611 | 6.0 | 420/A/A | 44.0 | 5.5-6.5 | 1279 | 8.2 | 24.0 | 196 | 7.7 | 8.2 | |||
| R14 | 195/70 R14 91T | 195/70 R14 | 91T | BW | 10.0 | 615.0 | 138.0 | 5.4 | 632 | 6.0 | 420/A/A | 44.0 | 5-6.5 | 1355 | 8.1 | 24.9 | 208 | 8.2 | 9.1 | |||
| R14 | 205/60 R14 89H | 205/60 R14 | 89H | BW | 10.0 | 580.0 | 164.0 | 6.5 | 605 | 6.0 | 420/A/A | 44.0 | 5.5-6.5 | 1279 | 8.3 | 23.8 | 202 | 8.0 | 9.1 | |||
| R14 | 205/70 R14 95T | 205/70 R14 | 95T | BW | 9.0 | 690.0 | 149.0 | 5.9 | 645 | 6.0 | 420/A/A | 44.0 | 5.5-6.5 | 1521 | 7.2 | 25.4 | 211 | 8.3 | 10.0 | |||
| R14 | 215/65 R14 94H | 215/65 R14 | 94H | BW | 11.0 | 670.0 | 167.0 | 6.6 | 638 | 6.5 | 420/A/A | 44.0 | 6-7 | 1477 | 8.5 | 25.1 | 218 | 8.6 | 9.6 | |||
| R15 | 165/80 R15 87T | 165/80 R15 | 87T | BW | 10.0 | 545.0 | 114.0 | 4.5 | 644 | 4.5 | 420/A/A | 44.0 | 4-5.5 | 1202 | 7.8 | 25.4 | 168 | 6.6 | 8.4 | |||
| R15 | 185/60 R15 84H | 185/60 R15 | 84H | BW | 10.0 | 500.0 | 148.0 | 5.8 | 607 | 5.5 | 420/A/A | 44.0 | 5-6 | 1102 | 8.0 | 23.9 | 184 | 7.2 | 7.9 | |||
| R15 | 185/65 R15 88H | 185/65 R15 | 88H | BW | 10.0 | 560.0 | 144.0 | 5.7 | 623 | 5.5 | 420/A/A | 44.0 | 5-6 | 1235 | 8.1 | 24.5 | 185 | 7.3 | 8.5 | |||
| R15 | 185/80 R15 93T | 185/80 R15 | 93T | BW | 10.0 | 650.0 | 128.0 | 5.0 | 677 | 5.0 | 420/A/A | 44.0 | 4.5-5.5 | 1433 | 7.6 | 26.7 | 150 | 5.9 | 10.0 | |||
| R15 | 195/60 R15 88H | 195/60 R15 | 88H | BW | 10.0 | 560.0 | 156.0 | 6.1 | 615 | 6.0 | 420/A/A | 44.0 | 5.5-6.5 | 1235 | 7.9 | 24.2 | 202 | 8.0 | 8.3 | |||
| R15 | 195/65 R15 91H | 195/65 R15 | 91H | BW | 10.0 | 615.0 | 145.0 | 5.7 | 636 | 6.0 | 420/A/A | 44.0 | 5.5-7 | 1355 | 8.2 | 25.0 | 201 | 7.9 | 9.2 | |||
| R15 | 195/65 R15 91T | 195/65 R15 | 91T | BW | 10.0 | 615.0 | 145.0 | 5.7 | 636 | 6.0 | 420/A/A | 44.0 | 5.5-7 | 1355 | 8.2 | 25.0 | 201 | 7.9 | 9.2 | |||
| R15 | 195/65 R15 95T XL | 195/65 R15 | 95T | XL | BW | 10.0 | 690.0 | 145.0 | 5.7 | 636 | 6.0 | 420/A/A | 50.0 | 5.5-7 | 1521 | 8.2 | 25.0 | XL | 201 | 7.9 | 9.3 | |
| R15 | 205/60 R15 91H | 205/60 R15 | 91H | BW | 11.0 | 615.0 | 168.0 | 6.6 | 628 | 6.0 | 420/A/A | 44.0 | 5.5-6.5 | 1356 | 8.4 | 24.7 | 206 | 8.1 | 9.6 | |||
| R15 | 205/60 R15 92H | 205/60 R15 | 92H | BW | 11.0 | 630.0 | 164.0 | 6.5 | 653 | 6.0 | 420/A/A | 44.0 | 5.5-6.5 | 1389 | 8.4 | 25.7 | 203 | 8.0 | 9.7 | |||
| R15 | 205/65 R15 95H | 205/65 R15 | 95H | BW | 10.0 | 690.0 | 162.0 | 6.4 | 647 | 6.0 | 420/A/A | 44.0 | 5.5-6.5 | 1521 | 8.0 | 25.5 | 205 | 8.1 | 10.3 | |||
| R15 | 205/65 R15 95T XL | 205/65 R15 | 95T | XL | BW | 10.0 | 690.0 | 160.0 | 6.3 | 647 | 6.0 | 420/A/A | 50.0 | 5.5-6.5 | 1521 | 8.1 | 25.5 | XL | 208 | 8.2 | 10.3 | |
| R15 | 205/70 R15 96T | 205/70 R15 | 96T | BW | 10.0 | 710.0 | 149.0 | 5.9 | 666 | 6.0 | 420/A/A | 44.0 | 5.5-6.5 | 1565 | 8.1 | 26.3 | 211 | 8.3 | 10.8 | |||
| R15 | 215/60 R15 94H | 215/60 R15 | 94H | BW | 11.0 | 670.0 | 172.0 | 6.8 | 642 | 6.5 | 420/A/A | 44.0 | 6-7 | 1477 | 8.5 | 25.3 | 218 | 8.6 | 10.7 | |||
| R15 | 215/60 R15 95H | 215/60 R15 | 95H | BW | 11.0 | 690.0 | 172.0 | 6.8 | 664 | 6.5 | 420/A/A | 44.0 | 6-7 | 1521 | 8.6 | 26.2 | 221 | 8.7 | 11.1 | |||
| R15 | 215/65 R15 96H | 215/65 R15 | 96H | BW | 11.0 | 710.0 | 167.0 | 6.6 | 663 | 6.5 | 420/A/A | 44.0 | 6-7 | 1565 | 8.5 | 26.1 | 216 | 8.5 | 10.7 | |||
| R15 | 215/70 R15 98T | 215/70 R15 | 98T | BW | 10.0 | 750.0 | 156.0 | 6.1 | 681 | 6.5 | 420/A/A | 44.0 | 6-7 | 1653 | 8.1 | 26.8 | 226 | 8.9 | 11.5 | |||
| R15 | 225/60 R15 96H | 225/60 R15 | 96H | BW | 11.0 | 710.0 | 180.0 | 7.1 | 651 | 6.5 | 420/A/A | 44.0 | 6-7 | 1565 | 8.6 | 25.6 | 223 | 8.8 | 10.9 | |||
| R16 | 215/65 R16 98H | 215/65 R16 | 98H | BW | 10.0 | 750.0 | 160.0 | 6.3 | 686 | 6.5 | 420/A/A | 44.0 | 6-7.5 | 1653 | 7.9 | 27.0 | 219 | 8.6 | 10.8 | |||
| R16 | 225/60 R16 98H | 225/60 R16 | 98H | BW | 11.0 | 750.0 | 184.0 | 7.2 | 678 | 6.5 | 420/A/A | 44.0 | 6-8 | 1653 | 8.7 | 26.7 | 228 | 9.0 | 12.1 | |||
| R16 | 225/60 R16 105H XL | 225/60 R16 | 105H | XL | RWL | 11.0 | 925.0 | 184.0 | 7.2 | 678 | 6.5 | 420/A/A | 50.0 | 6-7 | 2039 | 8.7 | 26.7 | XL | 226 | 8.9 | 11.9 | |
| R16 | 235/60 R16 100H | 235/60 R16 | 100H | BW | 11.0 | 800.0 | 187.0 | 7.4 | 691 | 7.0 | 420/A/A | 44.0 | 6.5-7.5 | 1764 | 8.8 | 27.2 | 236 | 9.3 | 12.1 |
